| Model | Rotary spray head |
|---|---|
| Material | 316L stainless steel |
| Connection | 3/4" BSPP (NPT or other connection on request) |
| Spray angle | 360 degree |
| Recommended Pressure | 3-10 bar |
| Max. pressure | 15 bar |
| Flow rate | 35-95 L/min |
| Max. spray diameter | 4m |
| Installation | Operation in every direction is possible |
| Filteration | line stainer with mesh size of 100 mesh |
| Min. tank opening | 62mm |
| Operating temperature | 60 °C (high temperature version on request) |

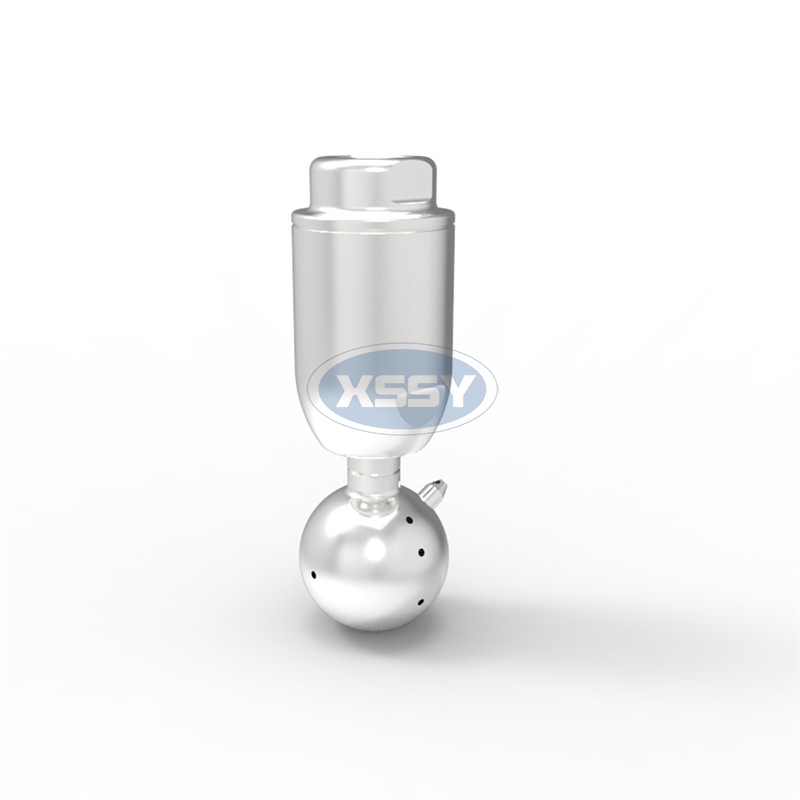

Application of tank cleaning nozzle
CIP tank cleaning nozzle is suitable for small to medium sized tanks, such as dairy, food, pharmaceutical, beer, chemical, industrial fermentation industries and occasions that require high impact cleaning. Especially suitable for occasions with certain viscosity, such as syrup, powder, etc.
Working principle of tank cleaning nozzle
Impeller is driven by cleaning fluid and drives internal reduction mechanism.
The speed is constant to obtain greater impact when increasing pressure.
Design feature:
*Cleaning fluid is sprayed out as a solid jet at the nozzle, and the impact force is greater, with precise layout of ball of self -rotating tank cleaning head, to achieve 360° full coverage cleaning.
*Built-in deceleration structure, impeller drive, stable operation, constant speed, it takes 1-3 seconds for the ball head to rotate one circle
*Operating pressure of 3-15bar
