Application

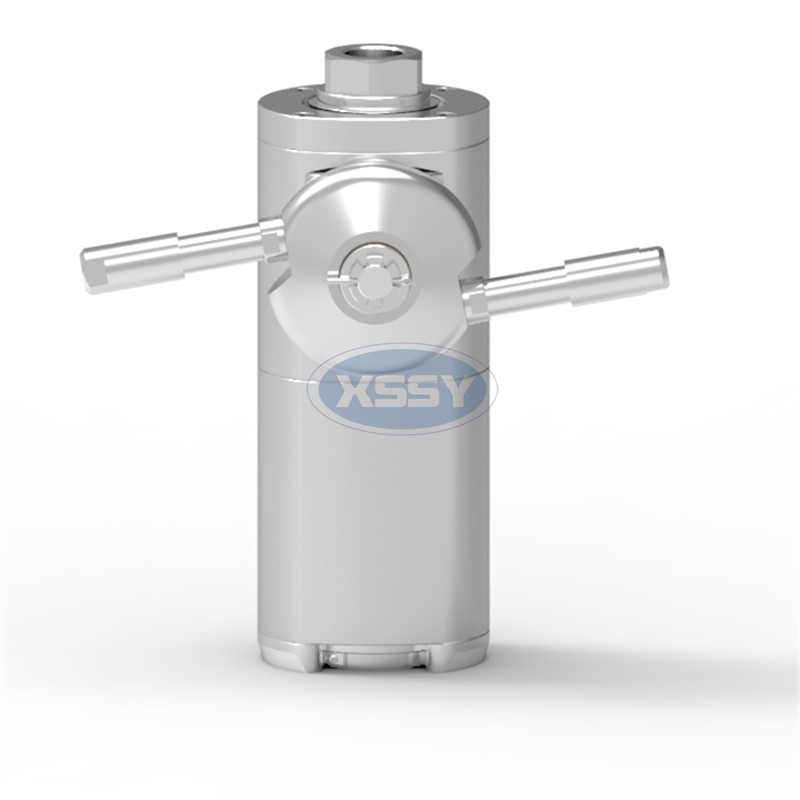

3D tank cleaning head is suitable for cleaning vessels, reactors,

autoclaves and tanks, in chemical industry,petrochemical industry, synthetic fiber industry, paper-making and food industry, coating industry and other occasions requiring ultra high pressure cleaning.

The HP500 can effectively clean boiler sediment,coke, polymer, PVC resin or residual scale that hard to remove.

It is designed to remove the toughest residues from large tanks in numerous industries and is customizable in a wide variety of ways.

Working principle

The washer drives the transmission mechanism to rotate through the reaction force, regulates the rotation speed through the reducer, and realizes the revolution and rotation through the transmission mechanism according to the set trajectory, thus forming a 360-degree injection mode to achieve complete tank coverage.

Design feature:

Dynamic balance design is adopted to keep the smooth rotation at high pressure

Stepless speed control and cleaning cycle, longer service life

Unique nozzle structure design enables the high-pressure water jet with greater impact force.

Powerful high pressure water jet can efficiently clean the stubborn dirt.

No need to enter the restricted space, greatly reduce labor intensity, and avoid safety hazards.
